High-throughput synthesis that flexes to your needs
Introducing the newest additions to the MerMade family of oligo synthesizers.
Designed to meet the needs of high-throughput workflows, the Pharos and Azimuth instruments can deliver 768 oligos in a single run.
The MerMade Pharos 768 can run up to eight 96-well plates together, yielding 768 20-mers in 8.5 hours.
The MerMade Azimuth 768 (coming soon) runs two plates, including combinations of 96-well and 384-well plates, offering greater flexibility for your workflows. With up to 32 amidites positions, this model can handle greater complexity for your R&D screening.
MerMade Pharos 768
- 768 column synthesizer: up to 8x 96-well plates
- 50 nmol to 5 µmol (2 nmol to 100 nmol with PolyFrit™ technology)
- 16 amidite positions
- Fast synthesis cycle: 768, 20mer primers in 8.5 hours
- Back pressurise feature
- 8 and 12 channel dispense capabilities for increased speed
- User friendly control software
- 9 reagent ports
- Injection head customisable: group reagent injections according to needs
- Reagent Supply Cutoff system to enhance bulk reagent delivery safety

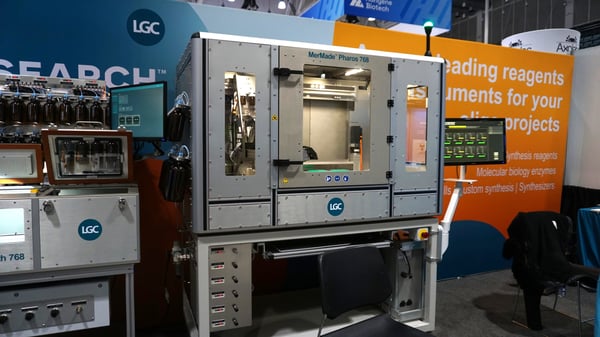

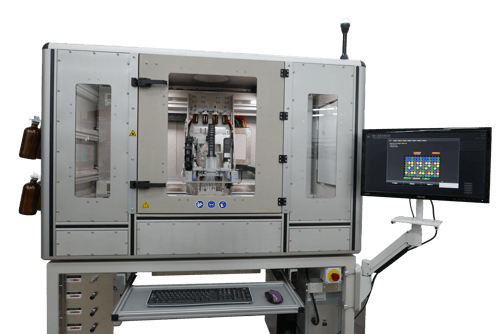

Figure 1: MerMade Pharos 768
MerMade Azimuth 768 (coming soon)
- 768 column synthesizer
- Can run 2x 96-well, 96-well + 384-well and 2x 384-well plates
- 2 nmol to 5 µmol (2 nmol to 100 nmol with PolyFrit™ technology)
- Up to 32 amidite positions
- Fast synthesis cycle
- Back pressurise feature
- Independent reagent manifolds with automated washing and blowout to prevent crystallisation of injection lines and valves
- User friendly control software
- Injection head customisable: group reagent injections according to needs

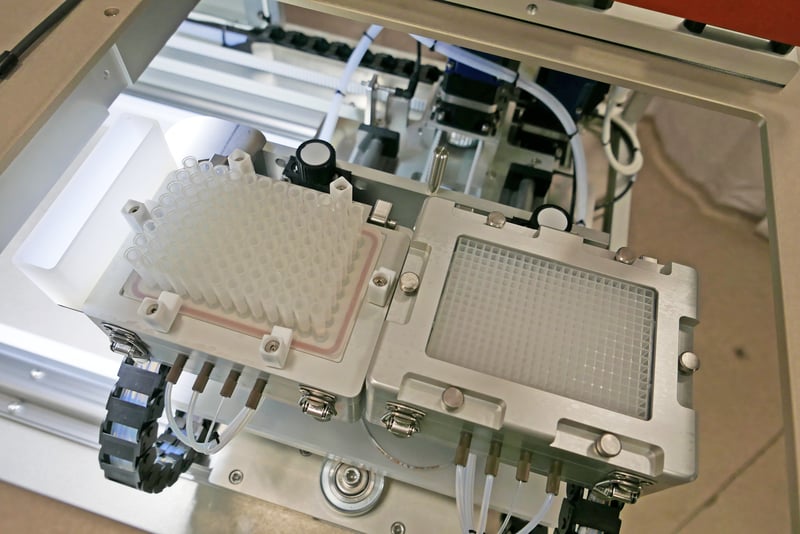

Figure 2: MerMade Azimuth 768
